MHA2

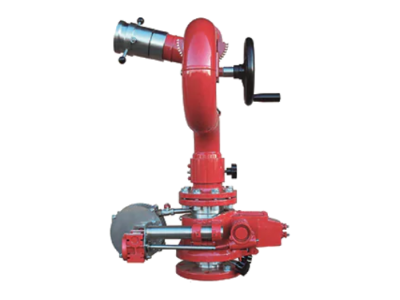

MHA2 Self Oscillating 1-Handwheel Monitor, 2 Swivels

TECHNICAL DOCUMENTS

Documents & Resources

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

TECHNICAL DOC.

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

Product Variants

SAP number EMHA2-3X3CPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-4X6SPX
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-3X3SPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-3X4SPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-3X4CPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-3X3CPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-4X6SPS
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-4X4CPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-4X6CPS
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-4X6CPX
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-4X4SPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-3X4SPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-3X4CPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-4X4SPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMHA2-3X3SPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMHA2-4X4CPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Handwheel
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number	Connection	Connection type	Size	Size 2	Finish	Main material	Style	Movement	Maximum flowrate
EMHA2-3X3CPS	Flange	PN16	3″/DN80	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-4X6SPX	Flange	PN16	6″/DN150	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-3X3SPS	Flange	PN16	3″/DN80	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-3X4SPS	Flange	PN16	4″/DN100	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-3X4CPS	Flange	PN16	4″/DN100	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-3X3CPX	Flange	PN16	3″/DN80	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-4X6SPS	Flange	PN16	6″/DN150	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-4X4CPX	Flange	PN16	4″/DN100	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-4X6CPS	Flange	PN16	6″/DN150	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-4X6CPX	Flange	PN16	6″/DN150	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-4X4SPS	Flange	PN16	4″/DN100	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-3X4SPX	Flange	PN16	4″/DN100	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-3X4CPX	Flange	PN16	4″/DN100	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-4X4SPX	Flange	PN16	4″/DN100	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000
EMHA2-3X3SPX	Flange	PN16	3″/DN80	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	4000
EMHA2-4X4CPS	Flange	PN16	4″/DN100	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Handwheel	2 Swivel – Vertical, Horizontal	8000

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
