MLA2

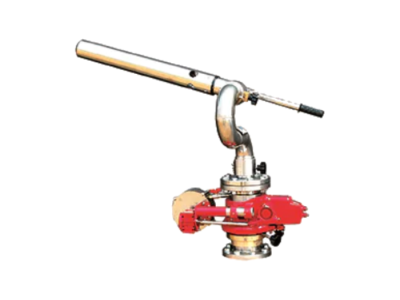

MLA2 Self Oscillating Lever Operated Monitor, 2 Swivels

TECHNICAL DOCUMENTS

Documents & Resources

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

TECHNICAL DOC.

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

Product Variants

SAP number EMLA2-3X4CPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-4X4CPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-4X4SPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-3X3CPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-4X4SPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-25X4SPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 2-1/2″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-25X3SPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-25X3CPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-25X3CPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-4X4CPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-25X4CPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 2-1/2″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-25X4SPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 2-1/2″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-4X6SPX
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-3X4CPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-3X4SPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-4X6CPS
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-4X6CPX
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-4X6SPS
Connection Flange
Connection type PN16
Size 6″/DN150
Size 2 4″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 8000

SAP number EMLA2-3X3CPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-3X3SPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-25X3SPX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number EMLA2-3X3SPS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-3X4SPS
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 3″ Body
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 4000

SAP number EMLA2-25X4CPX
Connection Flange
Connection type PN16
Size 4″/DN100
Size 2 2-1/2″ Body
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Carbon steel
Style Self oscillating – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2000

SAP number	Connection	Connection type	Size	Size 2	Finish	Main material	Style	Movement	Maximum flowrate
EMLA2-3X4CPX	Flange	PN16	4″/DN100	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-4X4CPS	Flange	PN16	4″/DN100	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-4X4SPX	Flange	PN16	4″/DN100	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-3X3CPS	Flange	PN16	3″/DN80	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-4X4SPS	Flange	PN16	4″/DN100	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-25X4SPS	Flange	PN16	4″/DN100	2 1/2″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-25X3SPS	Flange	PN16	3″/DN80	2 1/2″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-25X3CPX	Flange	PN16	3″/DN80	2 1/2″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-25X3CPS	Flange	PN16	3″/DN80	2 1/2″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-4X4CPX	Flange	PN16	4″/DN100	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-25X4CPS	Flange	PN16	4″/DN100	2 1/2″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-25X4SPX	Flange	PN16	4″/DN100	2 1/2″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-4X6SPX	Flange	PN16	6″/DN150	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-3X4CPS	Flange	PN16	4″/DN100	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-3X4SPX	Flange	PN16	4″/DN100	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-4X6CPS	Flange	PN16	6″/DN150	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-4X6CPX	Flange	PN16	6″/DN150	4″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-4X6SPS	Flange	PN16	6″/DN150	4″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	8000
EMLA2-3X3CPX	Flange	PN16	3″/DN80	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-3X3SPX	Flange	PN16	3″/DN80	3″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-25X3SPX	Flange	PN16	3″/DN80	2 1/2″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000
EMLA2-3X3SPS	Flange	PN16	3″/DN80	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-3X4SPS	Flange	PN16	4″/DN100	3″ Body	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	4000
EMLA2-25X4CPX	Flange	PN16	4″/DN100	2 1/2″ Body	Polished stainless steel	Stainless steel 316 \| Flange: Carbon steel	Self oscillating – Lever	2 Swivel – Vertical, Horizontal	2000

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
