MN

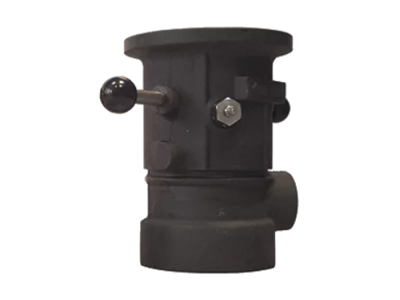

MN Monitor Nozzle

TECHNICAL DOCUMENTS

Documents & Resources

ENGLISH

FRENCH

GERMAN

TECHNICAL DOC.

ENGLISH

FRENCH

GERMAN

Product Variants

SAP number EMN25LB-25
Connection Threaded
Connection type Female BSP
Size 2-1/2″/DN65
Size 2 2-1/2″ Body
Finish Natural
Main material Nickel aluminium bronze
Style Foam-water adjustable monitor nozzle
Nominal flowrate 3,000 @ 7 bar
Maximum flowrate 3000

SAP number EMN60X-4
Connection Threaded
Connection type Female BSP
Size 4″/DN100
Size 2 4″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 8,000 @ 7 bar
Maximum flowrate 8000

SAP number EMN25LB-3
Connection Threaded
Connection type Female BSP
Size 3″/DN80
Size 2 3″ Body
Finish Natural
Main material Nickel aluminium bronze
Style Foam-water adjustable monitor nozzle
Nominal flowrate 3,000 @ 7 bar
Maximum flowrate 3000

SAP number EMN60X-3
Connection Threaded
Connection type Female BSP
Size 3″/DN80
Size 2 3″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 8,000 @ 7 bar
Maximum flowrate 8000

SAP number EMN45X-4
Connection Threaded
Connection type Female BSP
Size 4″/DN100
Size 2 4″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 4,500 @ 7 bar
Maximum flowrate 4500

SAP number EMN30X-4
Connection Threaded
Connection type Female BSP
Size 4″/DN100
Size 2 4″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 4,000 @ 7 bar
Maximum flowrate 4000

SAP number EMN25L-25
Connection Threaded
Connection type Female BSP
Size 2-1/2″/DN65
Size 2 2-1/2″ Body
Finish Natural
Main material Anodized aluminium
Style Foam-water adjustable monitor nozzle
Nominal flowrate 3,000 @ 7 bar
Maximum flowrate 3000

SAP number EMN25L-3
Connection Threaded
Connection type Female BSP
Size 3″/DN80
Size 2 3″ Body
Finish Natural
Main material Anodized aluminium
Style Foam-water adjustable monitor nozzle
Nominal flowrate 3,000 @ 7 bar
Maximum flowrate 3000

SAP number EMN30X-3
Connection Threaded
Connection type Female BSP
Size 3″/DN80
Size 2 3″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 4,000 @ 7 bar
Maximum flowrate 4000

SAP number EMN45X-3
Connection Threaded
Connection type Female BSP
Size 3″/DN80
Size 2 3″ Body
Finish Natural
Main material Stainless steel 316
Style Foam-water adjustable monitor nozzle
Nominal flowrate 4,500 @ 7 bar
Maximum flowrate 4500

SAP number	Connection	Connection type	Size	Size 2	Finish	Main material	Style	Nominal flowrate	Maximum flowrate
EMN25LB-25	Threaded	Female BSP	2 1/2″/DN65	2 1/2″ Body	Natural	Nickel aluminium bronze	Foam water adjustable monitor nozzle	3,000 @ 7 bar	3000
EMN60X-4	Threaded	Female BSP	4″/DN100	4″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	8,000 @ 7 bar	8000
EMN25LB-3	Threaded	Female BSP	3″/DN80	3″ Body	Natural	Nickel aluminium bronze	Foam water adjustable monitor nozzle	3,000 @ 7 bar	3000
EMN60X-3	Threaded	Female BSP	3″/DN80	3″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	8,000 @ 7 bar	8000
EMN45X-4	Threaded	Female BSP	4″/DN100	4″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	4,500 @ 7 bar	4500
EMN30X-4	Threaded	Female BSP	4″/DN100	4″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	4,000 @ 7 bar	4000
EMN25L-25	Threaded	Female BSP	2 1/2″/DN65	2 1/2″ Body	Natural	Anodized aluminium	Foam water adjustable monitor nozzle	3,000 @ 7 bar	3000
EMN25L-3	Threaded	Female BSP	3″/DN80	3″ Body	Natural	Anodized aluminium	Foam water adjustable monitor nozzle	3,000 @ 7 bar	3000
EMN30X-3	Threaded	Female BSP	3″/DN80	3″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	4,000 @ 7 bar	4000
EMN45X-3	Threaded	Female BSP	3″/DN80	3″ Body	Natural	Stainless steel 316	Foam water adjustable monitor nozzle	4,500 @ 7 bar	4500

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
