MP

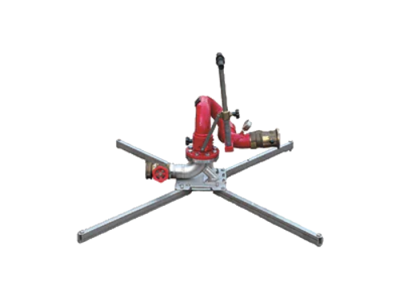

MP Lever Operated Portable Monitor

TECHNICAL DOCUMENTS

Documents & Resources

ENGLISH

FRENCH

GERMAN

TECHNICAL DOC.

ENGLISH

FRENCH

GERMAN

Product Variants

SAP number EM1P25X3SS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 1x 2-1/2″/DN65 BSP thread
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM1P25X3SX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 1x 2-1/2″/DN65 BSP thread
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM1PA25X3SX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 1x 2-1/2″/DN65 BSP thread
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM1PA25X3SS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 1x 2-1/2″/DN65 BSP thread
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM2P25X3SS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 2x 2-1/2″/DN65 BSP thread
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM2P25X3SX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 2x 2-1/2″/DN65 BSP thread
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM2PA25X3SS
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 2x 2-1/2″/DN65 BSP thread
Finish Flame red RAL3000
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number EM2PA25X3SX
Connection Flange
Connection type PN16
Size 3″/DN80
Size 2 2-1/2″ Body | Hose connection: 2x 2-1/2″/DN65 BSP thread
Finish Polished stainless steel
Main material Stainless steel 316 | Flange: Stainless steel
Style Manual – Lever
Movement 2 Swivel – Vertical, Horizontal
Maximum flowrate 2500

SAP number	Connection	Connection type	Size	Size 2	Finish	Main material	Style	Movement	Maximum flowrate
EM1P25X3SS	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 1x 2 1/2″/DN65 BSP thread	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM1P25X3SX	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 1x 2 1/2″/DN65 BSP thread	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM1PA25X3SX	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 1x 2 1/2″/DN65 BSP thread	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM1PA25X3SS	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 1x 2 1/2″/DN65 BSP thread	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM2P25X3SS	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 2x 2 1/2″/DN65 BSP thread	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM2P25X3SX	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 2x 2 1/2″/DN65 BSP thread	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM2PA25X3SS	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 2x 2 1/2″/DN65 BSP thread	Flame red RAL3000	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500
EM2PA25X3SX	Flange	PN16	3″/DN80	2 1/2″ Body \| Hose connection: 2x 2 1/2″/DN65 BSP thread	Polished stainless steel	Stainless steel 316 \| Flange: Stainless steel	Manual – Lever	2 Swivel – Vertical, Horizontal	2500

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
