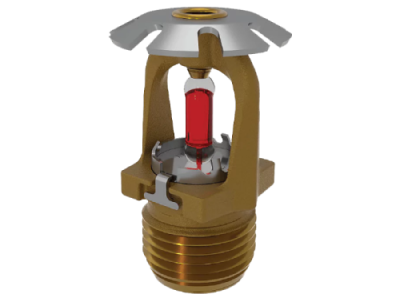

VK1202

VK1202 | DN15-1/2″ | K115 | Standard Response | Conventional | XT1

TECHNICAL DOCUMENTS

Documents & Resources

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

Product Variants

SAP number 23909AA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23909AB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23909AD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23909AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23909AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23909AZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23909FA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23909FB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23909FD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23909FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23909FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23909FZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23909JNA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23909JNB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23909JND
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23909JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23909JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23909JNZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23909MA/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23909MA/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23909MB/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23909MB/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23909MD/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23909MD/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23909ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23909ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23909MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23909MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23909MZ/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23909MZ/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Conventional
Response Standard
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
23909AA	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	57
23909AB	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	68
23909AD	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	79
23909AE	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	93
23909AG	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	141
23909AZ	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	Open
23909FA	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	57
23909FB	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	68
23909FD	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	79
23909FE	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	93
23909FG	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	141
23909FZ	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	Open
23909JNA	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	57
23909JNB	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	68
23909JND	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	79
23909JNE	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	93
23909JNG	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	141
23909JNZ	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	Open
23909MA/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	57
23909MA/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	57
23909MB/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	68
23909MB/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	68
23909MD/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	79
23909MD/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	79
23909ME/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	93
23909ME/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	93
23909MG/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	141
23909MG/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	141
23909MZ/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	Open
23909MZ/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Conventional	Standard	1/2″	1/2″	Open

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

Yerinde Keşif

Profesyonel kadromuz taleplerinize hızlı dönüş yapıyor, ihtiyacınıza en uygun ürün ve sistem tekliflerini hazırlıyoruz.

WhatsApp ile Yazın Bizi Arayın
