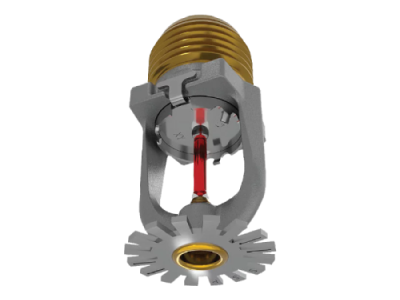

VK3021

VK3021 | DN15-1/2″ | K80 | Quick Response | Pendent | XT1

TECHNICAL DOCUMENTS

Documents & Resources

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

Product Variants

SAP number 23870AA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870AB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870AD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870AZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870FA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870FB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870FD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870FZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870JNA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870JNB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870JND
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870JNZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870MA/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870MA/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 57

SAP number 23870MB/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870MB/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 68

SAP number 23870MD/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870MD/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 79

SAP number 23870ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 93

SAP number 23870MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 141

SAP number 23870MZ/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number 23870MZ/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating Open

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
23870AA	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870AB	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870AD	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870AE	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870AG	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870AZ	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870FA	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870FB	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870FD	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870FE	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870FG	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870FZ	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870JNA	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870JNB	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870JND	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870JNE	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870JNG	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870JNZ	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870MA/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870MA/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	57
23870MB/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870MB/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	68
23870MD/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870MD/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	79
23870ME/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870ME/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	93
23870MG/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870MG/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	141
23870MZ/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open
23870MZ/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	Open

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

Yerinde Keşif

Profesyonel kadromuz taleplerinize hızlı dönüş yapıyor, ihtiyacınıza en uygun ürün ve sistem tekliflerini hazırlıyoruz.

WhatsApp ile Yazın Bizi Arayın
