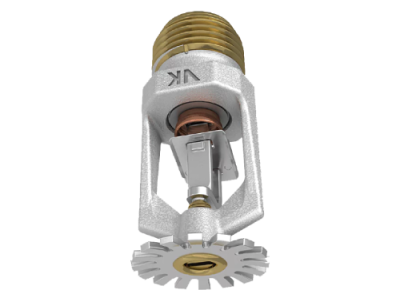

VK303

VK303 | DN15-1/2″ | K80 | Quick Response | Pendent | Fusible Link

TECHNICAL DOCUMENTS

Documents & Resources

ENGLISH

FRENCH

DRAWING FILES

ENGLISH

FRENCH

DRAWING FILES

Product Variants

SAP number 17536AC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 17536AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 17536AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 17536FC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 17536FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 17536FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 17536JNC
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 17536JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 17536JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 17536MC/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 17536MC/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 74

SAP number 17536ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 17536ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 96

SAP number 17536MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number 17536MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Pendent
Response Quick
Size 1/2″
Size 2 1/2″
Temperature rating 138

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
17536AC	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	74
17536AE	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	96
17536AG	Standard Coverage	Threaded	NPT	Brass	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	138
17536FC	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	74
17536FE	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	96
17536FG	Standard Coverage	Threaded	NPT	Chrome	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	138
17536JNC	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	74
17536JNE	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	96
17536JNG	Standard Coverage	Threaded	NPT	ENT	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	138
17536MC/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	74
17536MC/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	74
17536ME/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	96
17536ME/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	96
17536MG/B	Standard Coverage	Threaded	NPT	Black	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	138
17536MG/W	Standard Coverage	Threaded	NPT	White	80	5.6	Brass	12	Pendent	Quick	1/2″	1/2″	138

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
