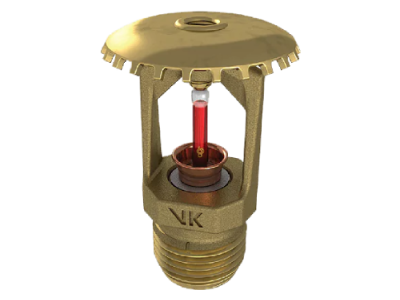

VK325
Product Variants
- SAP number 20982AB
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 20982AD
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 20982AE
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 20982AG
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 141
- SAP number 20982AZ
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Brass
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating Open
- SAP number 20982FB
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 20982FD
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 20982FE
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 20982FG
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Chrome
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 141
- SAP number 20982JNB
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 20982JND
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 20982JNE
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 20982JNG
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish ENT
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 141
- SAP number 20982MB/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 20982MB/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 68
- SAP number 20982MD/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 20982MD/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 79
- SAP number 20982ME/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 20982ME/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 93
- SAP number 20982MG/B
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish Black
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 141
- SAP number 20982MG/W
- Application detail Standard Coverage
- Connection Threaded
- Connection type NPT
- Finish White
- K factor metric 40
- K factor nominal 2.8
- Main material Brass
- Maximum working pressure 12
- Position Upright
- Response Quick
- Size 1/2″
- Size 2 1/2″
- Temperature rating 141
| SAP number | Application detail | Connection | Connection type | Finish | K factor metric | K factor nominal | Main material | Maximum working pressure | Position | Response | Size | Size 2 | Temperature rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20982AB | Standard Coverage |
Threaded |
NPT |
Brass |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
68 |
| 20982AD | Standard Coverage |
Threaded |
NPT |
Brass |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
79 |
| 20982AE | Standard Coverage |
Threaded |
NPT |
Brass |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
93 |
| 20982AG | Standard Coverage |
Threaded |
NPT |
Brass |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
141 |
| 20982AZ | Standard Coverage |
Threaded |
NPT |
Brass |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
Open |
| 20982FB | Standard Coverage |
Threaded |
NPT |
Chrome |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
68 |
| 20982FD | Standard Coverage |
Threaded |
NPT |
Chrome |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
79 |
| 20982FE | Standard Coverage |
Threaded |
NPT |
Chrome |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
93 |
| 20982FG | Standard Coverage |
Threaded |
NPT |
Chrome |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
141 |
| 20982JNB | Standard Coverage |
Threaded |
NPT |
ENT |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
68 |
| 20982JND | Standard Coverage |
Threaded |
NPT |
ENT |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
79 |
| 20982JNE | Standard Coverage |
Threaded |
NPT |
ENT |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
93 |
| 20982JNG | Standard Coverage |
Threaded |
NPT |
ENT |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
141 |
| 20982MB/B | Standard Coverage |
Threaded |
NPT |
Black |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
68 |
| 20982MB/W | Standard Coverage |
Threaded |
NPT |
White |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
68 |
| 20982MD/B | Standard Coverage |
Threaded |
NPT |
Black |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
79 |
| 20982MD/W | Standard Coverage |
Threaded |
NPT |
White |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
79 |
| 20982ME/B | Standard Coverage |
Threaded |
NPT |
Black |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
93 |
| 20982ME/W | Standard Coverage |
Threaded |
NPT |
White |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
93 |
| 20982MG/B | Standard Coverage |
Threaded |
NPT |
Black |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
141 |
| 20982MG/W | Standard Coverage |
Threaded |
NPT |
White |
40 |
2.8 |
Brass |
12 |
Upright |
Quick |
1/2″ |
1/2″ |
141 |
Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
