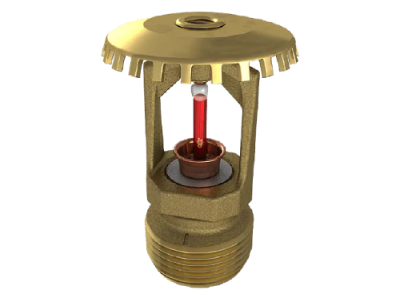

VK350

VK350 | DN20-3/4″ | K115 | Quick Response | Upright

TECHNICAL DOCUMENTS

Documents & Resources

ENGLISH

FRENCH

GERMAN

POLISH

SPANISH

SWEDISH

DUTCH;FLEMISH

DRAWING FILES

ENGLISH

FRENCH

GERMAN

POLISH

SPANISH

SWEDISH

DUTCH;FLEMISH

DRAWING FILES

Product Variants

SAP number 18257AA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 18257AB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 18257AD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 18257AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 18257AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 18257AZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number 18257FA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 18257FB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 18257FD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 18257FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 18257FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 18257JNB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 18257JND
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 18257JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 18257JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 18257MA/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 18257MA/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 18257MB/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 18257MB/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 18257MD/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 18257MD/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 18257ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 18257ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 18257MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 18257MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
18257AA	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
18257AB	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
18257AD	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
18257AE	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
18257AG	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
18257AZ	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open
18257FA	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
18257FB	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
18257FD	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
18257FE	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
18257FG	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
18257JNB	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
18257JND	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
18257JNE	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
18257JNG	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
18257MA/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
18257MA/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
18257MB/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
18257MB/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
18257MD/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
18257MD/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
18257ME/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
18257ME/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
18257MG/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
18257MG/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
