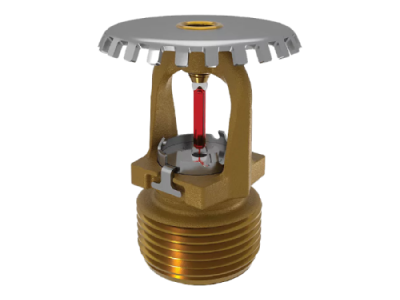

VK3501

VK3501 | DN20-3/4″ | K115 | Quick Response | Upright | XT1

TECHNICAL DOCUMENTS

Documents & Resources

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

TÜRKÇE

ENGLISH

FRENCH

GERMAN

ITALIAN

POLISH

ROMANIAN

SPANISH

SWEDISH

DUTCH;FLEMISH

PORTUGUESE

DRAWING FILES

Product Variants

SAP number 23877AA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 23877AB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 23877AD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 23877AE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 23877AG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 23877AZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number 23877FA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 23877FB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 23877FD
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 23877FE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 23877FG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 23877FZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number 23877JNA
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 23877JNB
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 23877JND
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 23877JNE
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 23877JNG
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 23877JNZ
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number 23877MA/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 23877MA/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 57

SAP number 23877MB/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 23877MB/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 68

SAP number 23877MD/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 23877MD/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 79

SAP number 23877ME/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 23877ME/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 93

SAP number 23877MG/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 23877MG/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating 141

SAP number 23877MZ/B
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish Black
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number 23877MZ/W
Application detail Standard Coverage
Connection Threaded
Connection type NPT
Finish White
K factor metric 115
K factor nominal 8
Main material Brass
Maximum working pressure 12
Position Upright
Response Quick
Size 3/4″
Size 2 3/4″
Temperature rating Open

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
23877AA	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
23877AB	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
23877AD	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
23877AE	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
23877AG	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
23877AZ	Standard Coverage	Threaded	NPT	Brass	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open
23877FA	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
23877FB	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
23877FD	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
23877FE	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
23877FG	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
23877FZ	Standard Coverage	Threaded	NPT	Chrome	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open
23877JNA	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
23877JNB	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
23877JND	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
23877JNE	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
23877JNG	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
23877JNZ	Standard Coverage	Threaded	NPT	ENT	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open
23877MA/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
23877MA/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	57
23877MB/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
23877MB/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	68
23877MD/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
23877MD/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	79
23877ME/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
23877ME/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	93
23877MG/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
23877MG/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	141
23877MZ/B	Standard Coverage	Threaded	NPT	Black	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open
23877MZ/W	Standard Coverage	Threaded	NPT	White	115	8	Brass	12	Upright	Quick	3/4″	3/4″	Open

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.

Yerinde Keşif

Profesyonel kadromuz taleplerinize hızlı dönüş yapıyor, ihtiyacınıza en uygun ürün ve sistem tekliflerini hazırlıyoruz.

WhatsApp ile Yazın Bizi Arayın
