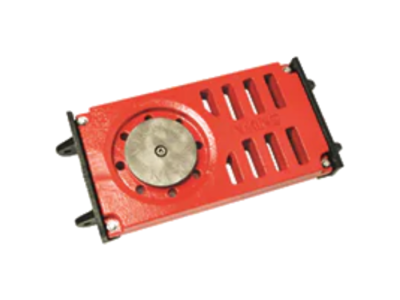

GN200 Grate Nozzle (for Replacement Only)

DOCUMENT DETAILS

Documents & Descriptions

The “GN200” grate nozzles are designed to protect aircraft hangars. FOR REPLACEMENT ONLY. New projects make use of model GN202. They are available with a 360°, 180°, or 90° discharge pattern and 26ʺ and 20ʺ widths to meet design requirements. The nozzles are installed flush with the floor of the protection area within the trench drain. The companion trench drain grate is specially engineered to receive the grate nozzle and serve as a cover for the drain trench. The grate nozzle assembly includes nozzle + trench grate + “X” frame support package.

TECHNICAL DOCUMENTS

Documents & Resources

ENGLISH

TECHNICAL DOC.

ENGLISH

Product Variants

SAP number F02022
K factor nominal 23,4
K factor metric 337
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 583 @ 3 bar

SAP number F13687
K factor nominal 7
K factor metric 100
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 300 @ 3 bar

SAP number F13690
K factor nominal 12
K factor metric 173
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 173 @ 3 bar

SAP number F13686
K factor nominal 7
K factor metric 100
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 300 @ 3 bar

SAP number F13689
K factor nominal 12
K factor metric 173
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 173 @ 3 bar

SAP number F02012
K factor nominal 23,4
K factor metric 337
Connection Grooved
Size 2″/DN50
Finish Flame red RAL3000
Main material Grate: Cast ductile iron | Nozzle: Stainless steel
Style Fixed
Nominal flowrate 583 @ 3 bar

SAP number	K factor nominal	K factor metric	Connection	Size	Finish	Main material	Style	Nominal flowrate
F02022	23,4	337	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	583 @ 3 bar
F13687	7	100	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	300 @ 3 bar
F13690	12	173	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	173 @ 3 bar
F13686	7	100	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	300 @ 3 bar
F13689	12	173	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	173 @ 3 bar
F02012	23,4	337	Grooved	2″/DN50	Flame red RAL3000	Grate: Cast ductile iron \| Nozzle: Stainless steel	Fixed	583 @ 3 bar

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
