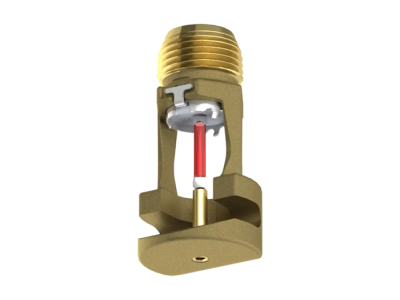

VK960

VK960 | DN15-1/2″ | K80 | Window | Pendent Vertical Sidewall

TECHNICAL DOCUMENTS

Documents & Resources

DRAWING FILES

DRAWINGS

DRAWING FILES

Product Variants

SAP number 23832AB
Application detail Window
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 68

SAP number 23832FB
Application detail Window
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 68

SAP number 23832AE
Application detail Window
Connection Threaded
Connection type NPT
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 93

SAP number 23829AB
Application detail Window
Connection Threaded
Connection type BSP
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 68

SAP number 23829AE
Application detail Window
Connection Threaded
Connection type BSP
Finish Brass
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 93

SAP number 23829FB
Application detail Window
Connection Threaded
Connection type BSP
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 68

SAP number 23829FE
Application detail Window
Connection Threaded
Connection type BSP
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 93

SAP number 23829JNB
Application detail Window
Connection Threaded
Connection type BSP
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 68

SAP number 23829JNE
Application detail Window
Connection Threaded
Connection type BSP
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 93

SAP number 23829MB/W
Application detail Window
Connection Threaded
Connection type BSP
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 68

SAP number 23829ME/W
Application detail Window
Connection Threaded
Connection type BSP
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 15 mm
Size 2 15 mm
Style
Temperature rating 93

SAP number 23832FE
Application detail Window
Connection Threaded
Connection type NPT
Finish Chrome
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 93

SAP number 23832JNB
Application detail Window
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 68

SAP number 23832JNE
Application detail Window
Connection Threaded
Connection type NPT
Finish ENT
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 93

SAP number 23832MB/B
Application detail Window
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 68

SAP number 23832MB/W
Application detail Window
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 68

SAP number 23832ME/B
Application detail Window
Connection Threaded
Connection type NPT
Finish Black
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 93

SAP number 23832ME/W
Application detail Window
Connection Threaded
Connection type NPT
Finish White
K factor metric 80
K factor nominal 5.6
Main material Brass
Maximum working pressure 12
Position Vertical sidewall
Response Quick
Size 1/2″
Size 2 1/2″
Style
Temperature rating 93

SAP number	Application detail	Connection	Connection type	Finish	K factor metric	K factor nominal	Main material	Maximum working pressure	Position	Response	Size	Size 2	Temperature rating
23832AB	Window	Threaded	NPT	Brass	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	68
23832FB	Window	Threaded	NPT	Chrome	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	68
23832AE	Window	Threaded	NPT	Brass	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	93
23829AB	Window	Threaded	BSP	Brass	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	68
23829AE	Window	Threaded	BSP	Brass	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	93
23829FB	Window	Threaded	BSP	Chrome	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	68
23829FE	Window	Threaded	BSP	Chrome	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	93
23829JNB	Window	Threaded	BSP	ENT	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	68
23829JNE	Window	Threaded	BSP	ENT	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	93
23829MB/W	Window	Threaded	BSP	White	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	68
23829ME/W	Window	Threaded	BSP	White	80	5.6	Brass	12	Vertical sidewall	Quick	15 mm	15 mm	93
23832FE	Window	Threaded	NPT	Chrome	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	93
23832JNB	Window	Threaded	NPT	ENT	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	68
23832JNE	Window	Threaded	NPT	ENT	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	93
23832MB/B	Window	Threaded	NPT	Black	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	68
23832MB/W	Window	Threaded	NPT	White	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	68
23832ME/B	Window	Threaded	NPT	Black	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	93
23832ME/W	Window	Threaded	NPT	White	80	5.6	Brass	12	Vertical sidewall	Quick	1/2″	1/2″	93

Additional part numbers might be available. Please refer to the technical documentation or contact your local Viking sales office for more information.
